PMR SANITARY BLOCK WITH WC, SHOWER AND WASHBASIN

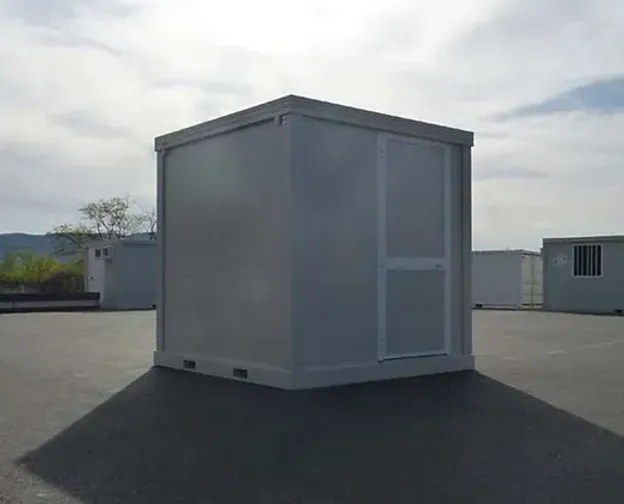

The PMR WC Shower sanitary block consists of a galvanized steel frame painted light gray.

Thickness 1.5 mm – height 154 mm, with 4 anchor points for transport by crane.

The base profiles are in galvanized steel, painted in light gray RAL 9002, thickness 2 mm – height 160 mm, with fork passage for handling with a 250 cm forklift.

The roof is made of hard polyurethane foam sandwich panels, 30 mm thick, Euroclass Cs3d0. The roof covering is made of corrugated galvanized iron with side drains for rainwater.

The walls are made of 40 mm thick hard foam sandwich panels.

The floor is 16 mm thick wood cement and is covered with PVC coating with a wall height of 5 cm.

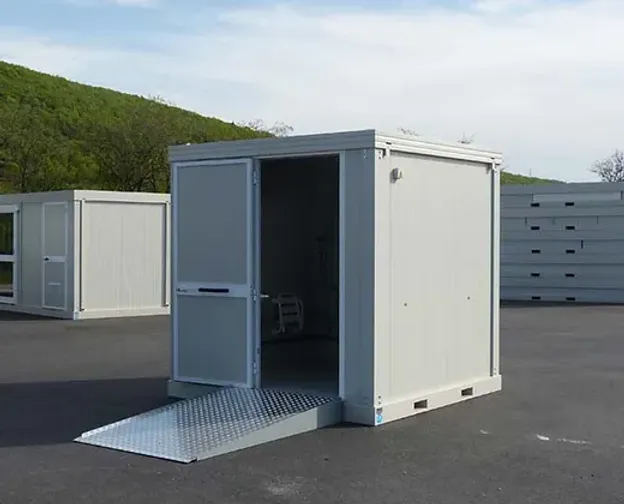

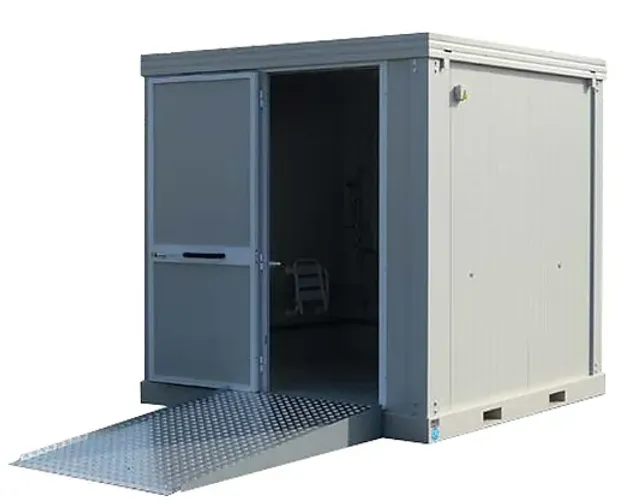

As an option, it is possible to add a PMR ramp and/or a PRM access platform, made from modified aluminum.

White lacquered aluminum joinery

The PMR WC-shower sanitary ware is equipped with a solid door measuring 104 x 220 cm (90 cm passage) with lock (without key), clinical aluminum handle and handrail.

It also has a 104 x 58 cm transom with cross bars and simple shaped glazing.

Connectable sanitary equipment

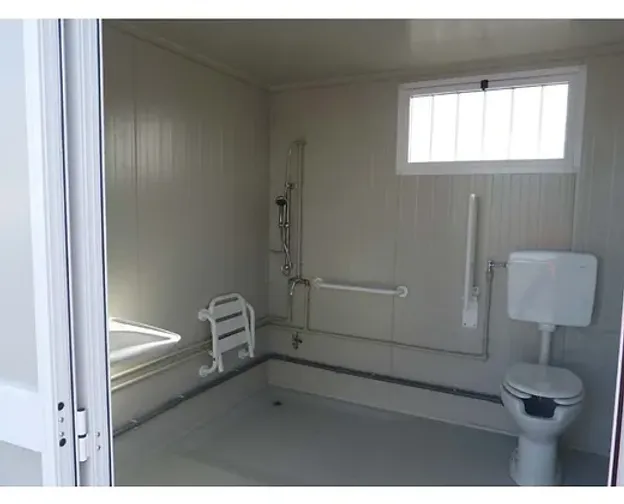

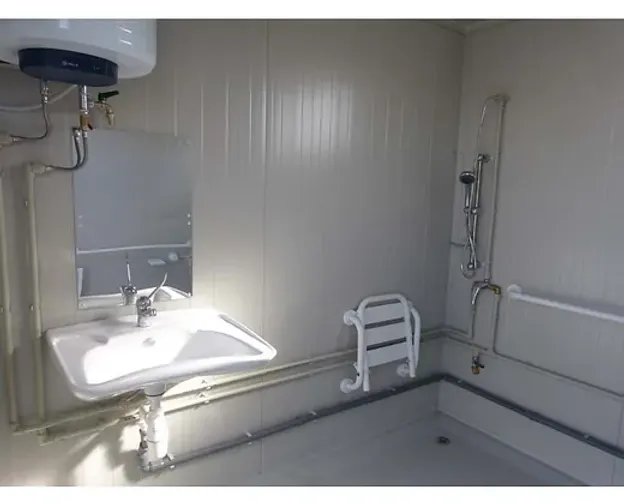

The PMR WC Shower sanitary block has an English-style ceramic toilet equipped for people with reduced mobility, a 60 x 51 cm ceramic sink with cold water tap and clinical lever, as well as a built-in shower 90 x 90 cm on the ground, equipped for people with reduced mobility (seat dimensions 47 x 45 cm).

The water inlet is on the wall and the drains are connected to 2 outlets (1 on the wall and 1 in the base: A / E / Ewl).

220 V electrical installation

Our PMR-WC-Shower sanitary block is equipped with a switch, an LED ceiling light, a 1000 watt convector, a 50 liter electric water heater, an emergency block above the door, an electrical panel including a differential and circuit breakers (6 KW maximum) and an external connection box.

Technical characteristics

MEASURES

Exterior height: 247 cm
Interior height: 220 cm
width: 242 cm
depth: 242 cm

FRAME

Material: galvanized and painted steel
Color: Light gray RAL 9002
Thickness: 1.5mm
Base: height 160 mm, thickness 2 mm
Roof: height 154 mm

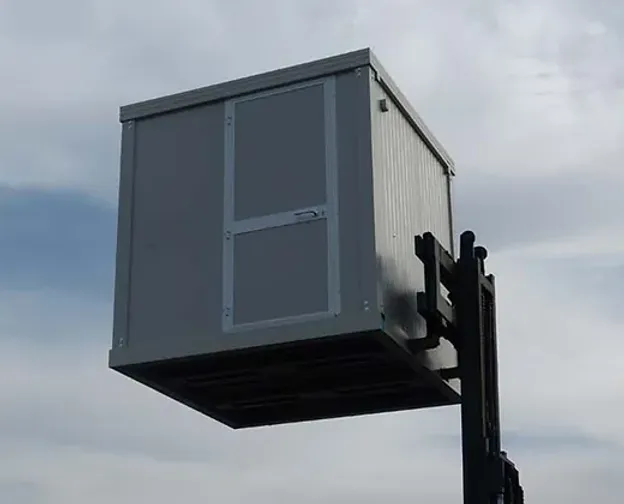

Handling: 4 sockets on the roof for lifting hooks, fork passage in the floor for handling with a forklift equipped with 250 cm forks.

TABLE

Material: white lacquered aluminum RAL 9010
Door(s): 1 massive door measuring 104 x 220 cm (90 cm passage) with lock (without key), clinical aluminum handle and handrail
Window: 1 transom window measuring 104 x 58 cm with lattices, single glazing

WALLS, PARTITIONS AND ROOF

Material: sandwich panels
Insulation: rigid polyurethane foam
Wall thickness: 40 mm
Roof thickness: 30 mm
Roof covering: Greek waves in galvanized sheet steel
Wall color: Light gray RAL 9002

GROUND

Structure: wood-cement plates
Thickness: 16mm
Covering: PVC with 5 cm overhang on the wall

HEALTH DEVELOPMENT

1 shower built into the floor measuring 90 x 90 cm with equipment for people with reduced mobility (the dimensions of the seat are 47 x 45 cm)
1 English-style ceramic toilet equipped for people with reduced mobility
1 ceramic sink 60 x 51 cm with cold/hot water tap and Clinique lever
Water inlet on the wall and drains in 2 outlets (1 on the wall and 1 in the base: A/E
